Upper compact model

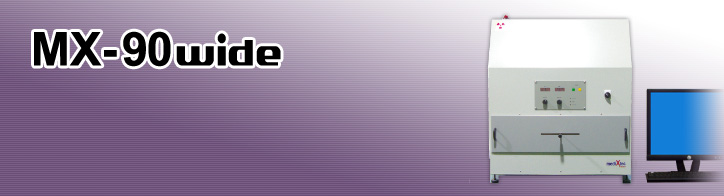

Desk-top type X-ray System MX-90wide
Recommended case the inspection of these items:
- Large sample
- Metal connector
- Electronic Parts
- IC
- Internal examination: Die-cast aluminum
- Motor
Features
- Wide field X-ray view: once found in large boards and samples (80 × 60mm)
- Variable magnification features
- Supports from small to large samples.
- Fast and easy operation employs multi-function lever (X¥Y and the rotation are operated with one lever.)
- You can intuitively easy to understand, rather than using the buttons to position.
- The image processing system is installed and the image processing of super-high speed, and operated by one button easily.
- MX-90wide can be inspected in larger parts than MX-90Basic.
- Die-cast aluminum automotive parts and thin crack in cast iron can be observed.
- The resolution improves by installing the option. (Image Intensifier Tube)
Specifications of MX-90wide
| MX-90wide | ||
|---|---|---|
| X-ray tube | X-ray voltage | 30kV〜90kV |
| X-ray current | max 0.5mA | |
| Focus size | 0.1mm | |
| X-ray CCD | view | 80mm×60mm(scale can be changed by the handle) |
| Option(I.I) | view | 80mm×60mm |
| switch 4inch / 2inch | ||
| table | size | (W)600mm×(D)470mm×(H)140mm |
| motion size | 180mm×200mm | |
| Rotary axis | 360° | |
| Cabin | size | (W)700mm×(D)600mm×(H)770mm |
| X-ray leak level | Under1.0μSv/h | |
| Cabin Weight | 170kg | |
| Image processing function | ImageView | With Image processing functions. |
| PC | With PC standard |
Examples of X-ray images: by MX-90wide+I.I.
Small motor
Battery
Aluminum Die Casting
